PNP, NPN, prepínateľná

s filtrom


Aktuálne vybraný produkt


Napájanie 230 V AC
Výkon 0,37 kW
Logika vstupov PNP, NPN, prepínateľná
Filter s filtrom
Brzdný tranzistor Integrovaný
Cena bez DPH 227.00 €
Cena s DPH 272.40 €




    Files Not Available

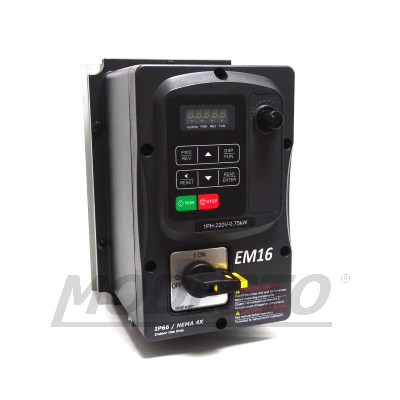

EM16 - IP66 are vector frequency inverters with IP66 protection. They are available with supply voltage 1 x 230 power in the range of 0.37 kW to 2.2 kW and 3 x 400 V in the power range of 0.7 kW to 11 kW.

The frequency inverters EM16-IP66 have the following standard equipment

  ♦ Degree of protection IP66

  ♦ Line filter

  ♦ Main power switch

  ♦ Braking transistor

  ♦ Potentiometer for setting the desired frequency

  ♦ Possibility of motor control in scalar mode (U / f) or in open-loop vector mode

  ♦ PID controller for pump and fan control (pressure and medium flow control)

  ♦ A simple sequential machine that automatically shifts up to 15 different engine speeds

  ♦ PLC for creating a simple drive control program

  ♦ special fire mode

  ♦ 6 freely programmable digital inputs with switchable PNP / NPN logic

  ♦ 1 digital input allows a safe engine stop

  ♦ 2 freely programmable digital relay outputs

  ♦ 2 analog inputs

  ♦ 1 analogue output

The frequency inverters EM16-IP66 are suitable for a variety of applications. From simple control of pump motors, fans and conveyors to control of machines and production lines (eg textile, wood, food, petrochemical industry, etc.).

Contact us, we will gladly advise you on the design of a regulated drive and commissioning of the frequency inverter.
