Aktuálne vybraný produkt


Typ modulu procesorový modul
Počet AI / AO 0 / 0
Počet DI / DO 8 / 6 x tranzistor PNP
Komunikačné rozhranie 1xRS485, 1xRS232
Napájanie 24 V DC
Cena bez DPH 79.00 €
Cena s DPH 94.80 €


    Files Not Available


is the second generation of Delta Electronics control systems. In our offer, it is represented by five representatives who are distinguished by their miniature dimensions, compact construction and high performance.

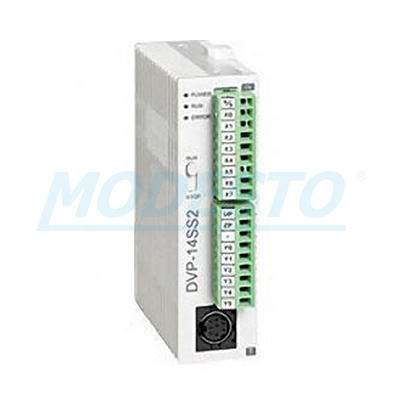

SS2 is the smallest PLC of the DVP series with a processor module containing 8 digital inputs and 6 digital outputs with a compact design with small dimensions and broad technical possibilities. The program memory has a size of 8,000 steps, and the data memory is 5,000 words (Words). In addition, this simplest version of Delta Electronics's PLC includes the RS485 and RS232 serial interfaces.

SA2 is a medium-sized PLC of the DVP series with a processor module featuring 8 digital inputs and 4 digital outputs. The program memory size is 16,000 steps and the 10,000 words (Words) data memory. The PLC DVP-SA2 includes one serial RS232 interface and two RS485 serial interfaces.

SX2 is the PLC with analog inputs and outputs of the DVP series with a processor module featuring 8 digital inputs, 6 digital outputs, 4 analog inputs and 2 analogue outputs. The program memory size is 16,000 steps, the data memory is 10,000 words (Words). The PLC DVP-SX2 contains the RS232 and RS485 serial interface. It also allows programming via USB input.

DVP-SV2 is the largest and fastest PLC in the DVP series. The program has a maximum size of 30,000 steps. It is equipped with a 32 bit processor. Basic instructions take 0.24μs. The maximum expandability is 13 digital input and output modules. The processor module has 16 inputs that can be connected as PNP. or NPN and 12 outputs (PNP transistor, NPN transistor or relay).

Communication is provided by a serial interface, 1x RS232, 1x RS485 with Modbus ASCII or RTU protocol.

DVP-SE is an Ethernet version of the PLC type series DVP with a processor module containing 8 digital inputs and 4 digital outputs. The size of the program memory is 16,000 steps and the data memory is 10,000 words (Words). It contains two RS485 serial interfaces communicating via Modbus ASCII or RTU protocol and one Ethernet connection.

All of the above mentioned control systems have a time to execute one instruction of 0.54 us. They enable the connection of a wide range of expansion modules, such as digital, analogue and communication interfaces (CAN open, Ethernet, ProfiBus, DeviceNet ...). The maximum number of digital expansion modules available is 14. Analog modules can be connected to a maximum of 8.

The development environment for PLC Delta Electronics is freely available on our website. Programming is possible in line diagrams, block sequences, or AWL programming languages. For programming, we recommend using ISP Soft, which is built according to IEC standards.

Our company is not only trying to sell PLCs, but thanks to many years of application experience, we also provide our customers with assistance in designing a control system or delivering turnkey solutions. The price / performance ratio of Delta Electronics's control systems will surely appeal to you. We look forward to your questions, do not hesitate to contact us.
